Backlit stone panels turn translucent onyx, quartzite or select marble into an engineered illuminated surface. The slab is cut thin, book-matched, laminated to a rigid backing and mounted over an even LED light panel. Switched off, it reads as a dramatic piece of natural stone. Switched on, the light passes through the crystal structure and the wall glows like a landscape painting. The green wall in our featured project photo is exactly this construction: a single book-matched translucent slab, framed in brass-toned trim, lit edge to edge with no visible hot spots.
The price gap in this category is wider than anywhere else in decorative stone. A US or EU fabricator will quote an installed backlit wall at $8,000 to $40,000 and up as a market estimate for August 2026, because each one is engineered as a one-off. A mill that runs translucent material every week treats it as a product: factory pricing for a complete wall kit — stone veneer, backing, LED system, frame and shop drawings — typically runs $1,800 to $12,000 depending on stone and size, before freight and local installation. That is the 30–60% factory-direct economics of this index applied to its most spectacular product.
Backlit stone panel construction: what you are buying
A finished backlit wall is a kit of four engineered layers. First, the stone itself, sawn to 5–8 mm veneer or supplied as a 2 cm slab where the material is translucent enough to carry light at full thickness. Second, a transparent structural backing — low-iron glass, acrylic or aluminium honeycomb with a translucent core — laminated to the stone so a thin, fragile veneer becomes a rigid, safe panel. Third, the light source: an even-emission LED backlight panel, not LED strips, because strips read as bright bars through the stone. Fourth, the frame and sub-structure that hold the assembly off the wall with service access to the LEDs.
Factories quote the kit as one line item per wall. A typical residential feature wall like the one in our project photo — around 2.4 × 2.7 m (roughly 70 sqft) — lands in the middle of the factory range; small niches and bar fronts sit at the bottom, and double-height hotel lobby walls at the top.
Which stones work — and which do not
Light transmission is a property of the crystal, not the colour. Classic onyx is the reference material: honey, amber, white and green onyx all glow warmly, which is why backlit onyx bars became a hotel-lobby cliché decades ago. Translucent quartzites — the family the green slab in our photo belongs to — are the current designer favourite: harder than onyx, more dramatic veining, and a colder, more mineral glow. Select marbles work when sawn thin: Calacatta-family whites and some Panda White blocks transmit enough light at 6 mm to read beautifully, though dimmer than onyx.
Dense, dark stones do not backlight. Nero Marquina, Emperador and most granites are effectively opaque at any workable thickness — if a supplier offers to backlight them, the light will only leak at the veins and the wall will look patchy. An honest mill tests a sample offcut against a light table and sends you the video before you commit a full slab. Ours does this on every backlit order.
Backlit stone panel prices: factory vs installed
As market estimates for August 2026, a complete factory wall kit prices out roughly like this: translucent quartzite or premium onyx stone content at $60–200 per sqft of finished panel; lamination to glass or honeycomb at $25–45 per sqft; even-emission LED panel with drivers at $15–30 per sqft; frame, crating and shop drawings typically $300–900 per wall. For a 70 sqft residential wall in mid-grade material, that stacks to roughly $7,000–12,000 ex-works; the same wall in standard honey onyx can come in near $4,000, and compact 20–30 sqft niches from $1,800.
Compare that with the installed market in the US and EU, where $300–600 per sqft is a normal quoted range for backlit onyx work — $21,000 to $42,000 for the same 70 sqft wall. The delta is not dishonesty; it is layers. A local fabricator buys the slab through an importer, sub-contracts the lamination, buys the LED system retail and carries the engineering risk on a one-off. The mill does all four steps in-house every week.
Case study: the green translucent wall

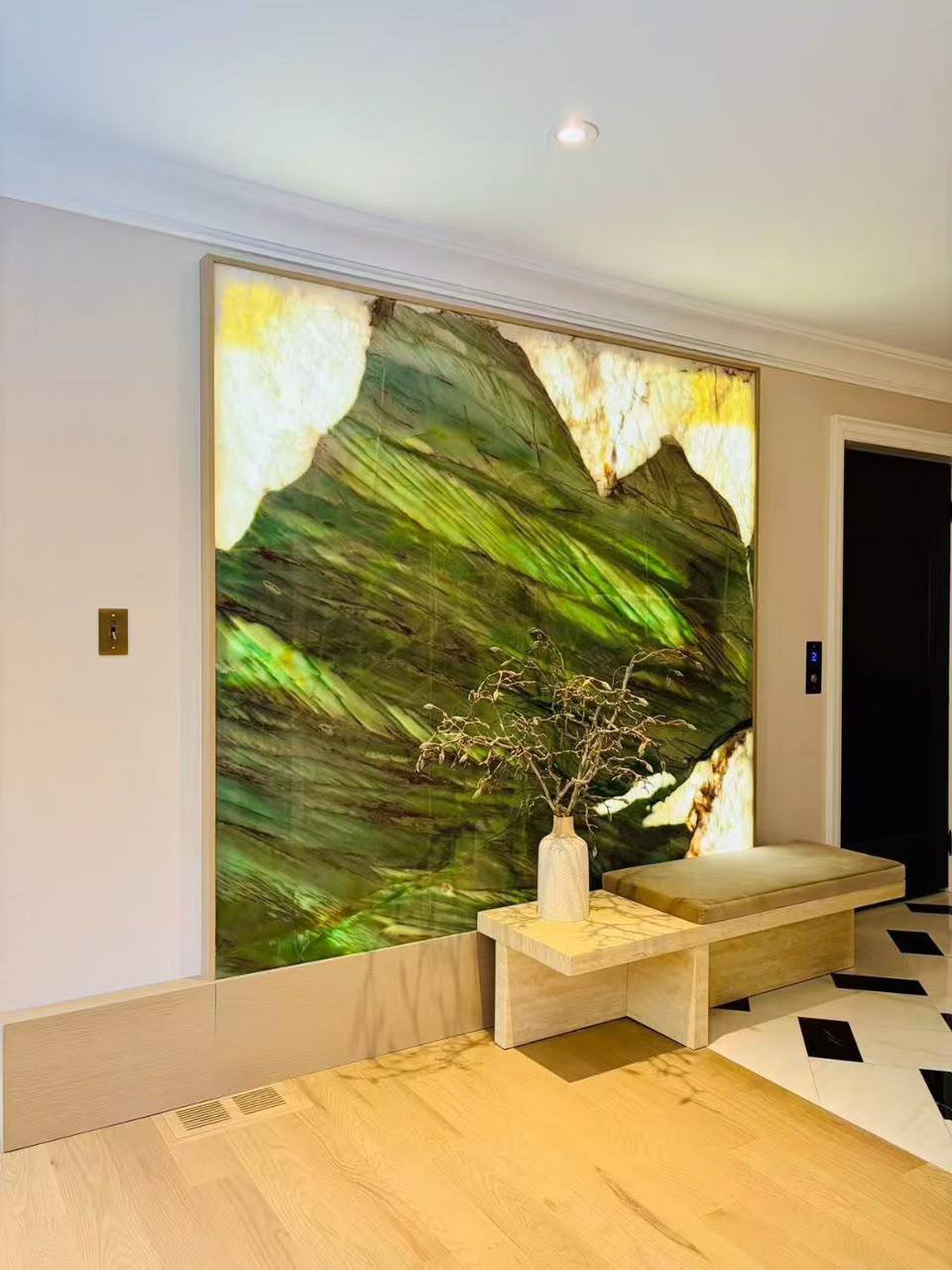

The project in our photo is a private residence entry hall: one book-matched translucent green slab, approximately 2.4 m wide by 2.7 m high, in a brushed brass-tone frame, floating over a travertine bench. The owner's brief was a wall that works twice — as a mineral artwork by day and as the main light source of the hallway in the evening.
The build sequence ran exactly as this category page describes: slab selected from quarry photos and a backlight test video; cut to 6 mm and laminated to low-iron glass; matched to an even-emission LED panel at 4000 K with a dim-to-warm driver; framed, crated as a numbered kit and shipped with a one-page install drawing. Local trades handled the sub-frame and electrical hookup in a day. As a representative example at August 2026 market estimates, a wall of this size and material grade prices around $8,500–11,000 as a factory kit, against typical US installed quotes of $25,000–35,000 for comparable work — the client's local quote was in that band before they went factory-direct.
The detail that makes the photo convincing is the evenness of the glow: no LED stripes, no dark corners, and the yellow calcite zones burning brighter than the green body of the stone — that is the crystal doing the work, not a filter.
Engineering and specs
Standard veneer thickness is 5–8 mm on 4–6 mm low-iron glass or 15–20 mm honeycomb; total panel build-up including LED cavity is usually 60–90 mm off the finished wall. Maximum single-panel sizes track slab sizes — around 2.8 × 1.8 m — with larger walls book-matched from sequential panels and seams engineered to fall on vein lines. LED systems are specified at 3000–6000 K (or tunable), CRI 90+, with drivers rated for 50,000 hours and mounted for service access; power draw runs 30–60 W per square metre of wall.
For wet areas — showers, pool walls, hammams — the lamination switches to full waterproof encapsulation and IP65-rated light panels. Exterior use is possible with UV-stable resins, though onyx colours can shift outdoors; quartzite is the safer exterior choice.
Ordering process
Backlit walls are engineered to order, so the process starts with the opening, not the slab: send wall dimensions, a photo of the space and the mood you want — warm honey glow or a cold mineral landscape. The mill replies with 3–6 candidate slabs photographed dry and backlit, with prices. After you pick the stone, you receive shop drawings with panel joints, frame section and electrical requirements for sign-off, then production takes 3–5 weeks.
Every wall ships as a numbered kit: panels, frame profiles, LED modules, drivers and an installation drawing sized for a local carpenter and electrician rather than a specialist stone crew. Crating is museum-grade — a laminated translucent panel is far tougher than raw onyx, but it is still stone travelling across an ocean.
Where backlit walls sell
The category's commercial sweet spot is anywhere a business needs one unforgettable surface: hotel reception desks and lobby walls, restaurant and rooftop bar fronts, spa and hammam interiors, jewellery boutiques, elevator lobbies in premium residential towers. In private homes the entry hall — as in our case study — and the wine room are the two most requested locations, followed by primary bathroom vanity walls.
For developers and hospitality groups the arithmetic is straightforward: one factory-direct backlit wall at $5,000–12,000 delivers the visual signature that interior photographers and guests actually share, at the price a US quote would put on the LED engineering alone. It pairs naturally with the mill's other scope — the same project can combine a backlit wall with marble flooring, vanity tops and reception counters in one container.
Maintenance and lifespan
A laminated backlit panel is lower-maintenance than an ordinary marble wall: the stone face is sealed and vertical, so etching and staining risks are minimal — routine care is a soft cloth and neutral cleaner. The service item is the light source, which is why the specification insists on removable frames or side-access cavities and on drivers mounted where an electrician can reach them. Quality even-emission panels are rated for 50,000 hours; at six evening hours a day that is over twenty years before relamping.
The one failure mode worth designing against is moisture ingress in wet areas — insist on encapsulated edges and IP-rated components, and ask the mill to state both in the quote. It is a one-line request that separates serious fabricators from resellers.
Frequently asked questions
How much do backlit stone panels cost?
As market estimates for August 2026: factory-direct complete panel and wall kits run $1,800–12,000 depending on stone and size, while installed one-off projects in the US typically quote $8,000–40,000+. Freight and local installation add to the factory figure, but the total still lands far below Western installed quotes.
Which stone is best for a backlit wall?
Onyx gives the warmest, strongest glow and the classic look; translucent quartzite — like the green stone in our case study — gives harder wearing panels with more dramatic veining; thin-sawn Calacatta-family marbles glow more softly. Dense dark stones like Nero Marquina do not transmit light.
What lighting is used behind backlit stone?
Even-emission LED light panels, not LED strips. Panels deliver uniform glow with no visible bars, are specified at CRI 90+ and 3000–6000 K, and are rated around 50,000 hours. Drivers are mounted with service access so the system can be maintained without touching the stone.
Can a backlit wall be installed by local trades?
Yes — that is the point of the kit format. Panels arrive numbered with frame profiles, LED modules and an installation drawing; a carpenter builds the sub-frame and an electrician connects the drivers. No specialist stone crew is required for a standard residential wall.
Can backlit stone be used in showers or outdoors?
Wet areas are routine with waterproof encapsulation and IP65-rated light panels — spas and hammams are a core use. Outdoors is possible with UV-stable lamination; quartzite holds colour better than onyx in direct sun, so it is the safer exterior choice.
How long does a made-to-order backlit wall take?
Typically 3–5 weeks in production after slab selection and drawing sign-off, plus ocean freight. Slab candidates with backlight test videos usually reach you within the first week after you send wall dimensions and a photo of the space.
